Yüksek Hız ve Uzun Menzilli Okuma





Features
Indy R2000 Chip               Excellent Reading Performance
Strong Stability  Heat Dispersion
 Low Power Consumption        Outstanding Consistency
Functions

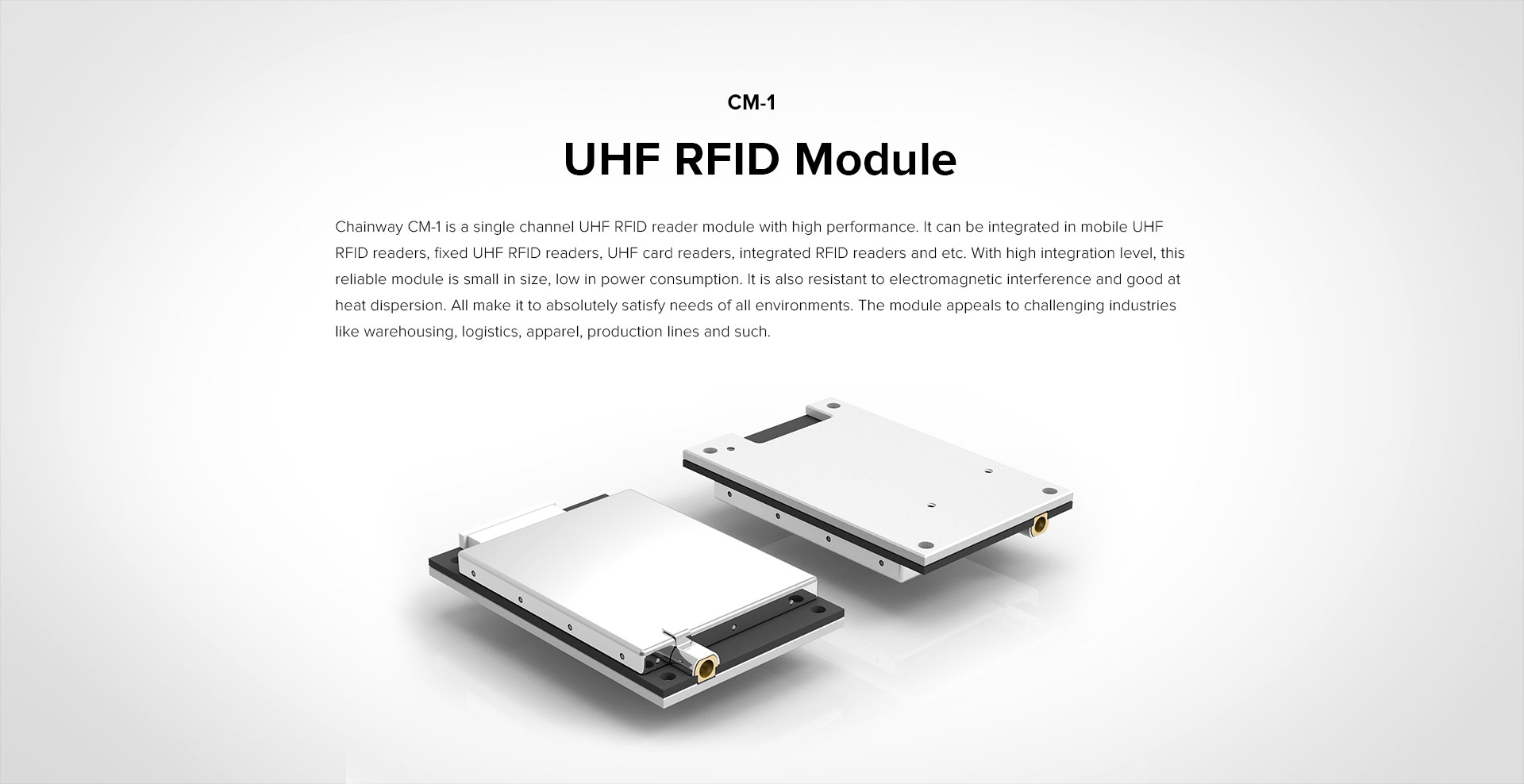

 UHF RFID

TEKNİK ÖZELLİKLER

Development Board
Module CM-X_EDCB
Physical Characteristics
Dimensions 57.2mm x 36.8mm x 7.6mm
Weight 26.0g/0.92oz
RFID Features
RF Chip Indy R2000
Air Interface Protocol EPCglobal Gen2 (ISO18000-6C)
Working Frequency 860–960MHz
Output Power 5-30dBm adjustable
1dB step interval
+/- 0.5dB precision
Output Power Flatness +/- 0.2dB
Antenna Interface 50Ω RF connector MMCX Receptacle
Regions Supported FCC 902-928 MHz
ETSI 865.6-867.6 MHz
China 920-925MHz
Others for customization(865-868MHz, 902-928MHz)
Receive Sensitivity < -88 dBm
Tag RSSI Supported
Antenna Detector Supported
Ambient Temp Monitor Supported
Working Mode Single/DRM
Communication Interface
Connector 12 PIN FPC Connector
Host Communication UART 3.3V TTL Level
Baud Rate: 115200bps
Power Supply
Input Voltage DC 3.5-5.25V
Power Consumption in RF Output Mode 5.3W@30dBm
Power Consumption in Standby Mode(EN high TTL level) 0.15W
Power Consumption in Power Down Mode(EN low TTL level) 1μW
User Environment
Operating Temp. -25℃ to 65℃
Storage Temp. -40℃ to 85℃
Humidity 10% - 95%
Reading Performance
Reading Rate >200 tags/s
Reading Range >10m (with 4dBic antenna)
