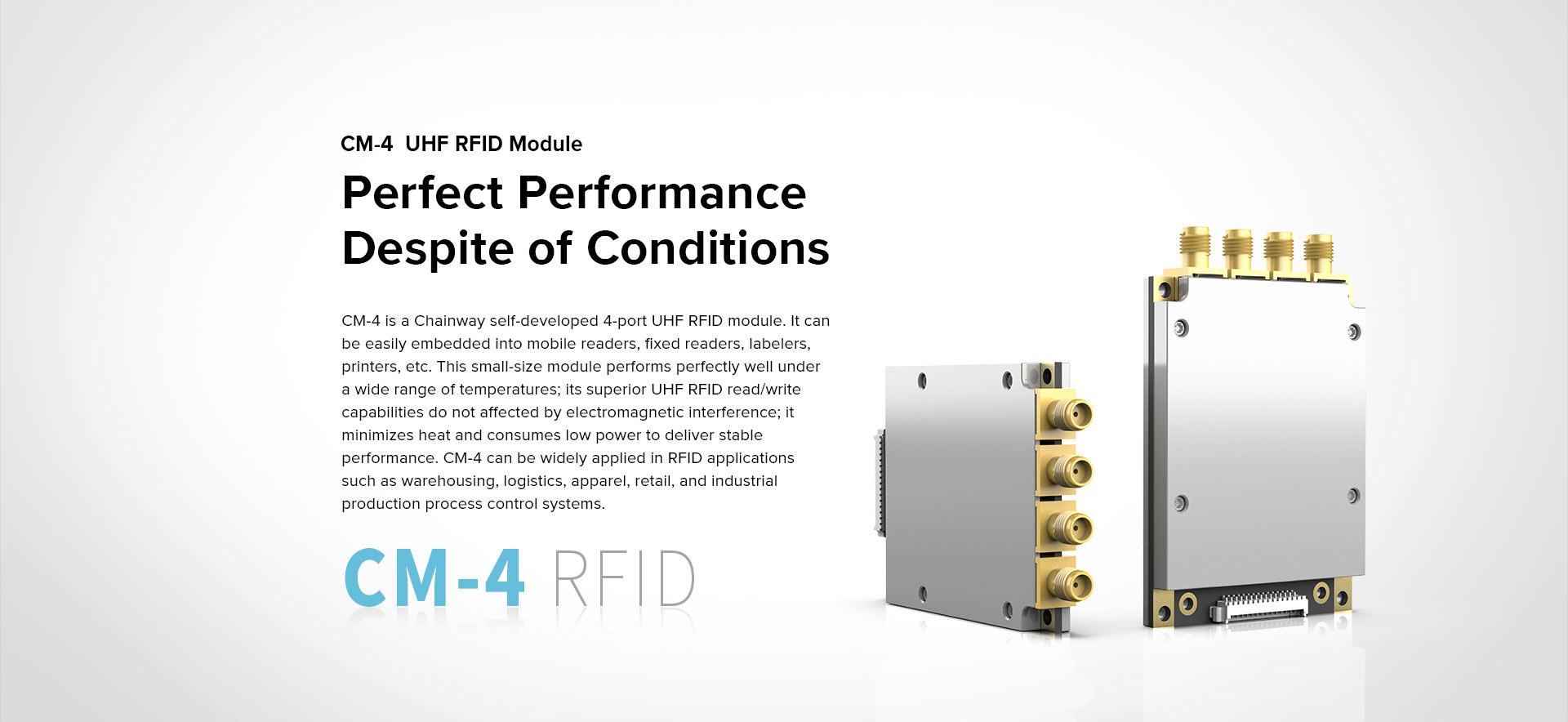

Çoklu Etiketleri Daha Hızlı Okuma





Features
Indy R2000 Chip               Excellent Reading Performance
Strong Stability  Heat Dispersion
 Low Power Consumption        Fast 4 Antenna Switch Inventory
Functions
 UHF RFID

TEKNİK ÖZELLİKLER

Development Board
Module CM-X_EDCB
Physical Characteristics

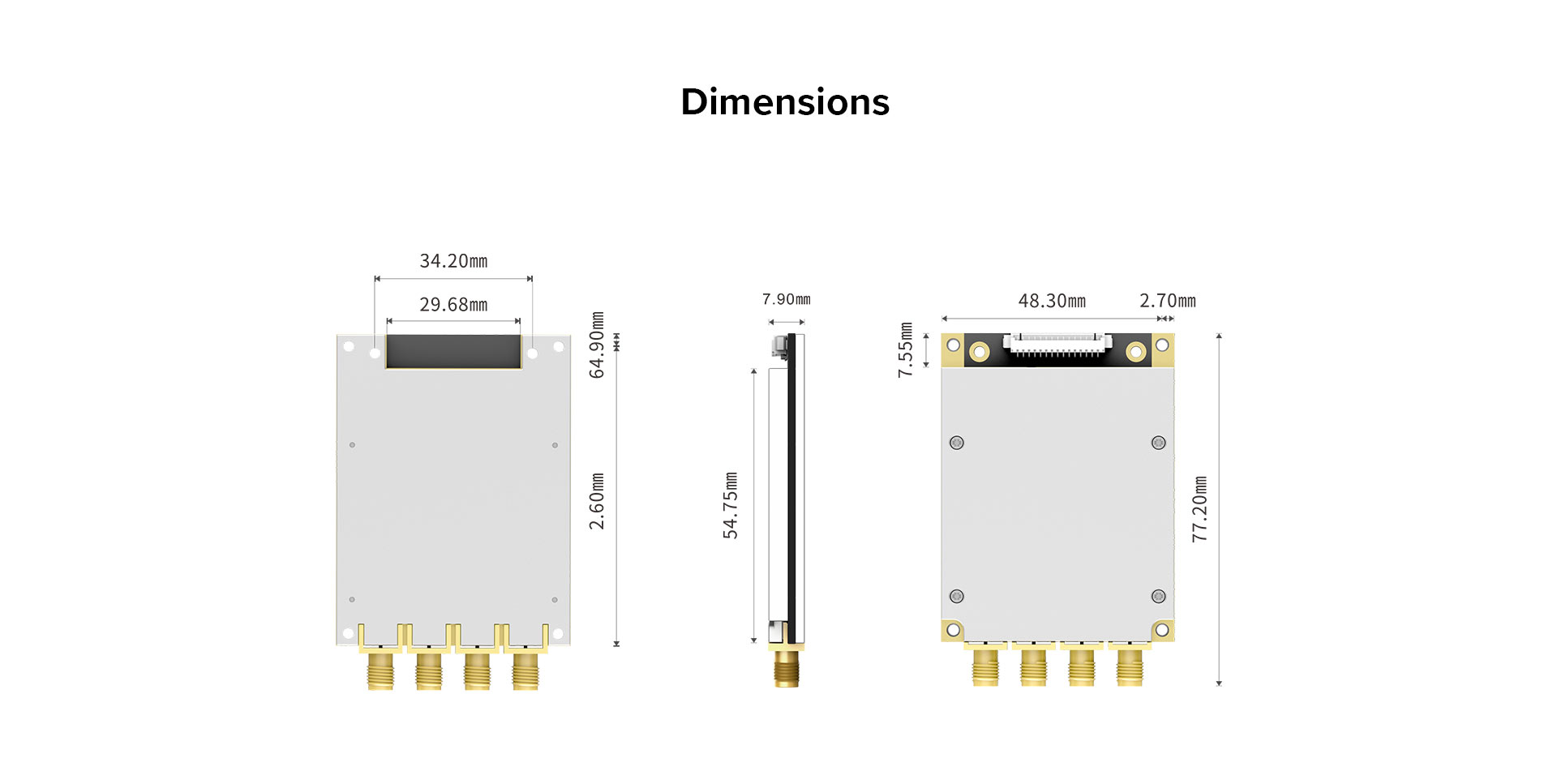

Dimensions 77.2mm x 51.0mm x 7.9mm
Weight 52.0g/1.83oz
RFID Features
RF Chip Indy R2000
Air Interface Protocol EPCglobal Gen2 (ISO18000-6C)
Working Frequency 860–960MHz
Output Power 5-30dBm adjustable
1dB step interval
+/- 1dB precision
Output Power Flatness +/- 0.2dB
Antenna Interface 4-channel 50Ω RF connector SMA Receptacle
Regions Supported FCC 902-928 MHz
ETSI 865.6-867.6 MHz
China 920-925MHz
Others for customization(865-868MHz, 902-928MHz)
Receive Sensitivity < -88 dBm
Tag RSSI Supported
Antenna Detector Supported
Ambient Temp Monitor Supported
Working Mode Single/DRM

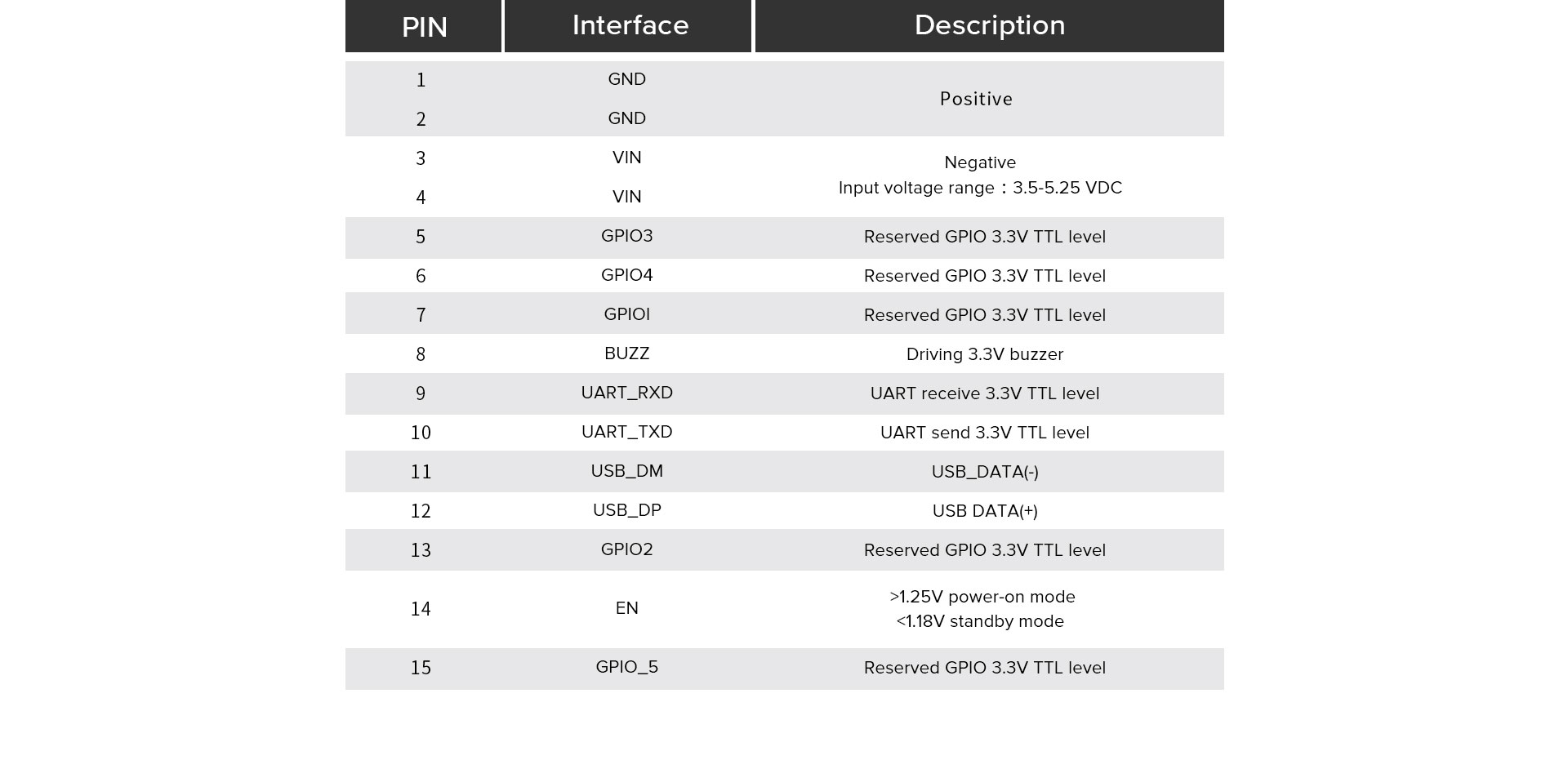

Communication Interface
Connector 15 PIN W-TO-B Connector
Host Communication UART 3.3V TTL Level
Baud Rate: 115200bps
Power Supply
Input Voltage DC 3.5-5.25V
Power Consumption in RF Output Mode 5.3W@30dBm
Power Consumption in Standby Mode(EN high TTL level) 0.15W
Power Consumption in Power Down Mode(EN low TTL level) 30μW
User Environment
Operating Temp. -25℃ to 65℃
Storage Temp. -40℃ to 85℃
Humidity 10% - 95%
Reading Performance
Reading Rate >400 tags/s
Reading Range >10m (with 4dBic antenna)
